Oilfield Drilling Fluids Submersible Electric Slurry Pump

Shaanxi Aipu Solids Control Co., Ltd

Oilfield Drilling Fluids Submersible Electric Slurry Pump

Brand Name : AIPU Solids

Model Number : APYZ

Certification : API, ISO

Place of Origin : China

MOQ : 1 set

Price : USD3400~6300/Set

Payment Terms : L/C, T/T

Supply Ability : 200 Sets per month

Delivery Time : 1 week

Packaging Details : Sea worthy frame or plywood box and pallet.

Driven : By electrical motor

Material : High quality casting iron. Abrasion-reistant

Condition : New

After-sales service provided : In time and professional. Spare parts in stock

Application : Oil and gas drilling, on shore and offshore platform

Color : Customizable

Power system : 380V,400V,415V,440V, 460V,480V,600V, 660V, Customizable

Frequency : 50HZ/60HZ, or customized

Rental : No

Warranty : 1 year

Contact Now

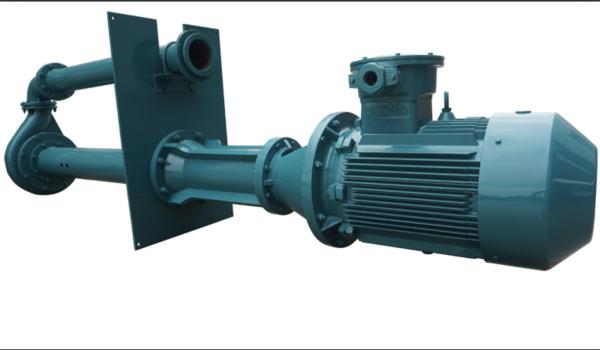

Oilfield drilling fluids submersible slurry pump APYZ series for sale

APYZ series slurry pump is one kind of centrifugal pump. Here the slurry pump is submersible type. It's vertical type. Compared to normal centridfugal pump used in drilling fluids process, the slurry pump is compact occupies little space. And the material of APYZ submersible slurry pump is more anti-abrasive.For oil drilling fluids system, they are used to transfer drilling mud from desilter tank to the centrifuges as feeding pump of centrifuges.

The submersible slurry pump can be also used in the mud recycling system for HDD or other civil construction need mud system. Then the slurry pump is used to deliver drilling mud into the shale shaker as it's different with the oilfield mud system. For diferent use and location, the submersible depth can be adjusted accordingly.

How to select a submersible slurry pump?

Firstly, we need to check the centrifuge flow rate or treating capacity in oilfield mud sytstem. Usually we fit APYZ slurry pump driven by 10hp motor for a high speed centrifuge APGLW355X1258. Then, we need to consider the tank or pit depth. There will be initial design on slurry pump submerged length. We need to find out the professional supplier of such pump. It's important to centrifuge performance and whole mud system benefits, even whole drilling project

For the HDD mud recycling system, the slurry pump can be selected according to the shaker capacity. And then confirm the power of pump. The depth of such pump is very flexible. Even there is a pit deeps 3m, we can add an extended pipe on the pump inlet port.

What are the popular slurry pump at AIPU?

There are different demand from various clients. However, the popular pumps including the AP50YZ50-30, AP80YZ80-30, and AP100YZ100-30. The difference including treating capacity, the motor power, the submerged depth. They are widely used in oilfield mud process and HDD mud recycling system.

Is there any other slurry pump?

Yes. There are many different model of submersible slurry pump. Including the AP50YZ20-18, AP50YZ25-12, AP65YZ50-12, and so on. Clients can select the pumps according to the practical working condition. Furthermore, if clients prefer the low price items, the material will be different with common raw material. Including the pump body and the pump impeller.

The slurry pump can be the horizontal type. That means the material is more durable and anti-abrasive than common centrifugal pump but the installation way is the horizontal type. Service life and the function will be same as the submersible slurry pump.

Furthermore, AIPU Slurry pump can be configured flexibly. For example, considering the flow rate and motor consumption we may combine 22kw motor on the AP100YZ100-30 or fit 22kw motor on the AP100YZ100-30A. And, if clients request special certification, IEC, ATEX, UL, and so on, we can fit the right motors, too.

Specification of APYZ series slurry pump

Please check below technical specifications for your reference. And some configuration is customizable. Please contact us for more details

Model Flow Rate Head(m) Speed(RPM) Efficiency(%) Power(kw)
m³/h L/s
AP50YZ20-18 20 5.6 18 1430 42 3
AP50YZ25-12 30 8.3 11 1430 38.2 3
AP50YZ50-20 40 11 22 1440 41 7.5
AP65YZ50-12 50 13.8 12 1440 55.9 5.5
AP80YZ80-20 80 22.2 21 1460 55 11
AP80YZ80-20A 90 25 15.6 1460 51 11
AP100YZ100-30A 110 30.6 24 1470 54 18.5
AP100YZ100-30 120 33.3 28 1470 56 22
AP100YZ160-38 160 44.4 39 1480 52 45
AP150YZ250-40B 200 55.6 25 1480 49 37
AP150YZ250-40A 240 66.7 31 1480 50 45
AP150YZ280-20 320 88.9 17 980 57 37

For any question or demand, please feel free to contact AIPU solids. You will get a free offer on an optimal solution, you will get a professional proposal very soon.
